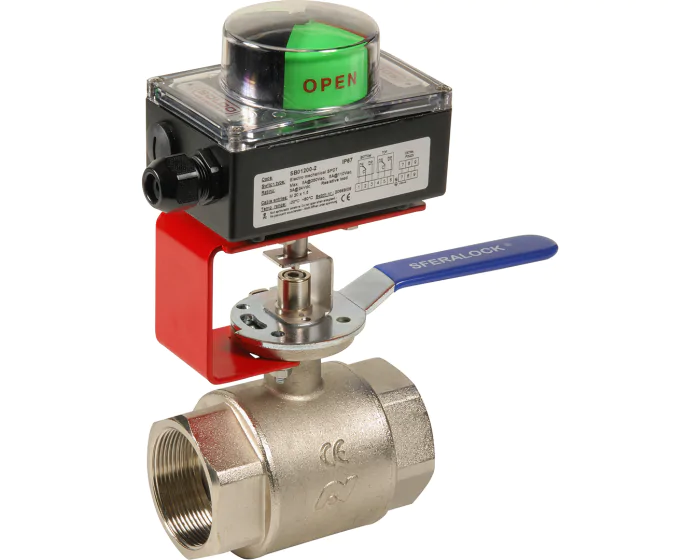

CW 617 N brass body and ball, PTFE seats, full bore. PS: 16 bar - TS: -10/+100°C. G threaded fittings. Limit switch box SF012, 2 dry contacts SPDT.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Brass 614N |
| Switch type | dry SPDT |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 63.5 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Body material | Brass CW617N |
| Number of ways | 2 |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 2-piece body DN15 - 1/2'' | 2700020462012 | S1009967 |
€243.54
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN20 - 3/4'' | 2700030462012 | S1009968 |
€251.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN25 - 1'' | 2700040462012 | S1009969 |
€261.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN32 - 1''1/4 | 2700050462012 | S1009970 |
€275.83
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN40 - 1''1/2 | 2700060462012 | S1009971 |
€290.87
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN50 - 2'' | 2700070462012 | S1009972 |
€397.43
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN65 - 2''1/2 | 2700380462012 | S1009973 |
€492.51
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN80 - 3'' | 2700390462012 | S1009974 |
€517.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 2-piece body DN100 - 4'' | 2700400462012 | S1009975 |
€795.60
(excl. btw)
|
add to cart |
